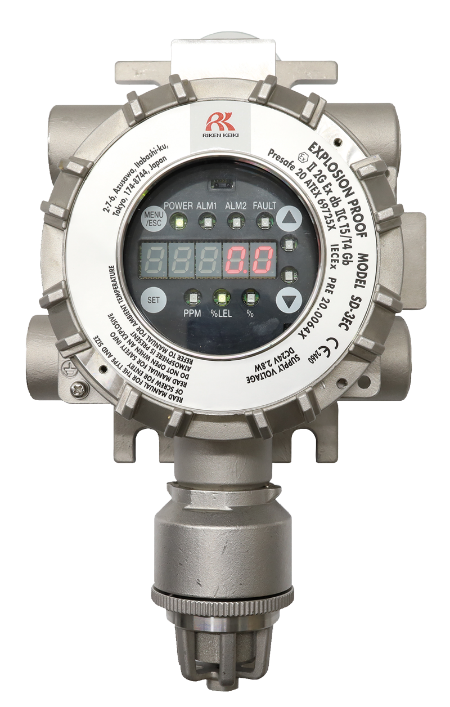

Gas Detector with Signal Converter
SD-3 series
SD-3EC
Features
・Next generation high performance sensor "F Sensor Series" is installed,
greatly improving both functions and performance.
・Complies with different global standards (including planned certifications).
・Wide range of output options.
・Rugged housing construction allows use even in harsh environments.
・Wide range of types to suit a variety of uses and installation environments.
Model list
・SD-3EC, SD-3DEC, SD-3ECB (Diffusion type)
・SD-3DEC, SD-3DECS, SD-3DECB (Suction type)
・SD-3SC+GD-3EC/ECS/ECB (Remote type)
Sampling method
|
Suction and Diffusion
|
Principle of detection
|
Potentiostatic Electrolysis Method
|
Explosion protected construction
|
Flameproof enclosures, Flameproof enclosures + Intrinsic safety
|
Explosion-proof class
|
IECEx : Ex db II C T4 Gb ATEX : II 2G Ex db II C T4 Gb
|
Ingress proof rating
|
IP66/67
|
Approvals
|
Japan Ex, ATEX, IECEx, Taiwan Ex, China Ex, SIL, FM
|
CE marking
|
EMC / LVD / ATEX / RoHS
|
Power source
|
24 VDC (18 to 30 VDC)
|
Dimensions
|
Approx. 171(W) ×277(H) ×127(D) mm (Diffusion type)
Approx. 171(W)× 289(H) ×127(D) mm (Suction type)
|
Weight
|
Approx. 6.7 kg (Diffusion type)
Approx. 7.0 kg (Suction type)
|
Target gas
|
H2S, NO2
|
|
