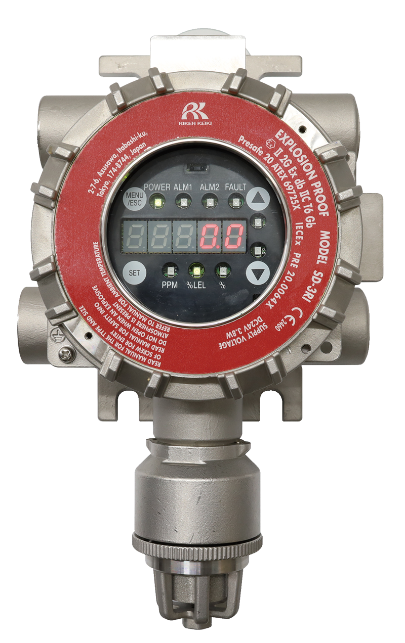

Gas Detector with Signal Converter

SD-3 series

SD-3NC

Features

・Next generation high performance sensor "F Sensor Series" is installed,

     greatly improving both functions and performance.

・Complies with different global standards (including planned certifications).

・Wide range of output options.

・Rugged housing construction allows use even in harsh environments.

・Wide range of types to suit a variety of uses and installation environments.

Model list

・ SD-3NC (Diffusion type)

・SD-3DNC (Suction type)

・SD-3SC+GD-3NC (Remote type)







Sampling method

Suction and Diffusion

Principle of detection

New Ceramic catalytic Method

Explosion protected construction

Flameproof enclosures

Explosion-proof class

IECEx : Ex db II C T5/T4 Gb
ATEX : II 2G Ex db II C T5/T4 Gb

Ingress proof rating

IP66/67

Approvals

Japan Ex, ATEX, IECEx, Taiwan Ex, China Ex, SIL, EN 60079-29-1, FM

CE marking

EMC / LVD / ATEX / RoHS

Power source

24 VDC (18 to 30 VDC)

Dimensions

Approx. 171(W) ×277(H) ×127(D) mm (SD-3NC)
Approx. 171(W)× 289(H) ×127(D) mm (SD-3DNC)

Weight

Approx. 6.7 kg (SD-3NC)
Approx. 7.0 kg (SD-3DNC)

Target gas

C2H2, C2H4, C2H5OH, C2H6, C3H6, C3H6O, C3H8, C4H6, C7H8, C8H18, CH3OH, CH4, DMAC, H2, i-C4H10, i-C4H8, IPA, n-C6H14, VCM
